Custom Metal Fabrication Capabilities.

Dream big. We’re ready for you.

Image of Machining Worker
Because ExacTech is OEM to sister entities Marine Travelift and Shuttlelift, we have the expertise and processes to offer design guidance and assembly capabilities to our customers. This cuts down on project overhead and expedites the entire fabrication process.

ExacTech is dedicated to meeting your business needs by offering custom metal fabrication and cost effective processing, machining, assembly and painting solutions all at one location to better serve your bottom line. We exceed our customers’ expectations with our superior quality, innovative technology, advanced industry knowledge and timely delivery expectations. Our turnkey capabilities separate us from the competition and give our clients a comprehensive assurance that we’ll get the job done right.

Heavy Custom Fabrication Center

  • (4) Set-up tables 12′ x 115′

LVD HYDRAULIC PRESS

  • 200 Ton
  • 13′ Width

LVD HYDRAULIC PRESS

  • 1000 Ton
  • 24′ Width

HYDRAULIC STRAIGHTENING PRESS

  • 300 Ton
  • C-Style

Medium Fabrication Center

  • (3) Set-up Tables 6 ‘x 20′, 5′ x 45′, 6’ x 13’

Horizontal Boring Bar

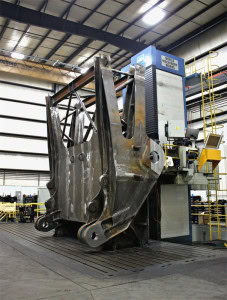

WMW BP-180 CNC TRAVELING COLUMN BORING BAR WITH FANUC 18MC CONTROL

  • Travel X = 36′ Y = 16.5′ Z = 6WMW‘
  • 16.5″ x 16.5″ Ram
  • 7.1″ Spindle
  • 80HP Spindle motor
  • Right angle head
  • 14′ x 40′ Floor plate

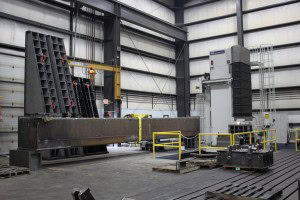

HNK MODEL HFB 150 CNC RAM/FLOOR HEAVY DUTY HORIZONTAL BORING & MILLING MACHINE

  • Fanuc 18i MB ControlHNK
  • X = 20′, Y = 10.5′, Z = 2.6′
  • CNC Rotary Table 7′ x 6.5′ 20 ton capacity
  • Right angle head
  • Coolant through spindle
  • Full rotary table 87″ x 78″
  • 60 Station tool changer
  • 12′ x 8’6″ stationary table

Plasma & Oxy Fuel Burning

ALLTRA HG-16-10 HIGH PRECISION GANTRY SYSTEM PLASMA

  • Edge start 3″ thick material
  • Pierce up to 2.5” thick material
  • 44.5′ Effective cut length
  • True shape automatic nesting to reduce scrap
  • Pin-point video monitoring to reduce scrap and increase efficiency
  • Hyperthem® XPR 460 X-Definition plasma system for increased efficiency, accuracy & flexibility
  • Tilt: +/- 15 degrees and rotation +/- 150 degrees capability

ALLTRA HG30-9 PRECISION GANTRY CUTTING SYSTEM PLASMA

  • (2) Oxy fuel plasma torches
  • (1) 2” Thick plasma capability beveling up to 1.75”
  • (1) Arc writer plasma marking station
  • 24′ x 9′8” Effective cutting envelope
  • Hyperthem® XPR 300-Core Plus X-Definition Plasma System with Oxy fuel for increased efficiency, accuracy, & flexibility
  • 10″ Thick capability on Oxy fuel
  • Bevel Angle +/- 50 Degrees

Precision Machining Center

FADAL 6535HTX Vertical Machining Center

  • X=65” , Y=35” , Z=34”
  • Fanuc 18iMB
  • Thru Coolant Spindle
  • 30 Hp
  • CAT 50

KH 1000 HORIZONTAL MACHINING CENTER WITH FANUC 31i-A CONTROLLER

KH 1000

  • Fanuc 31i-A Control
  • X = 82.7″, Y = 53.1″, Z = 55.1″
  • Pallet shuttle
  • 120 Station tool changer
  • Coolant through spindle
  • 4,500 RPM spindle
  • Full rotary table 39.4″ x 39.4″

KIA TURN 28L CNC TURNING CENTER

  • Travel; X = 8.7″ Z = 43.3″
  • 23.2″ Swing
  • 3.15″ Bar capacity
  • 42.13″ Between centers

Mighty Sumo VMC-2100 3- Axis Vertical Machining Center

  • Fanuc 18i-MB
  • X=81”, Y=40”, Z=32”
  • #50 Taper
  • 10” Chuck

Assembly & Finishing Services

LIFTINGImage of Large Equipment

  • 100-ton lifting capacity
  • (2) 50-ton cranes
  • (1) 15-ton bridge crane
  • (4) 5 and 3 ton cranes
  • (1) 2-ton crane

HEAVY ASSEMBLY

  • 60,000 Square ft shop floor for assembling very large jobs

HEAVY BLASTING FACILITY

  • 60′ ft Wide x 70′ Long

PAINTING

  • 18′ x 55′ Paint Booth
  • 20′ x 50’10” Paint Booth
